Product Overview

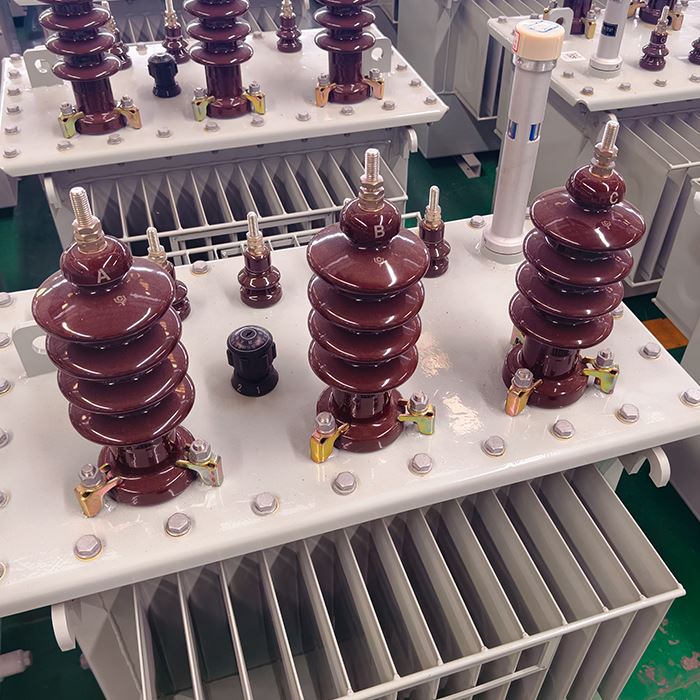

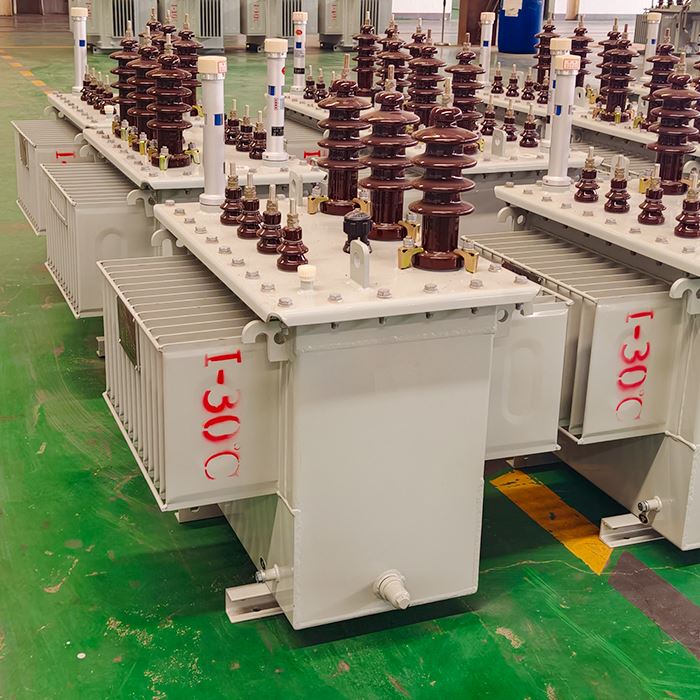

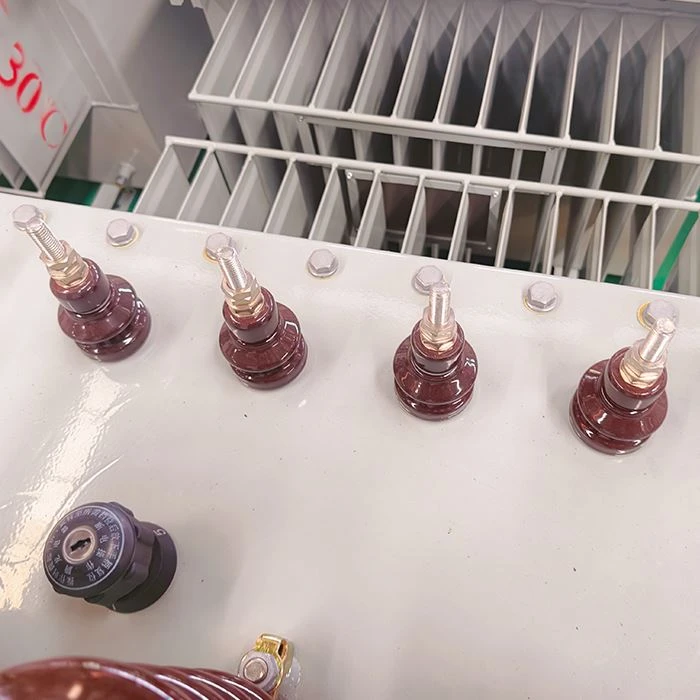

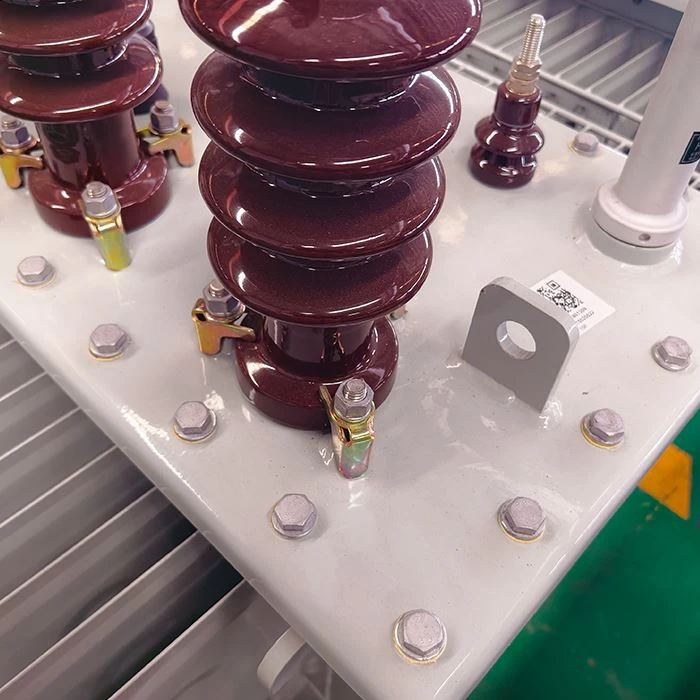

The 100 kVA three phase oil immersed transformer is a fully sealed transformer. Compared with ordinary oil immersed transformers, it eliminates the oil conservator. Changes in oil volume are automatically adjusted and compensated by the elasticity of the corrugated sheets in the corrugated oil tank. The transformer is isolated from the air, preventing and slowing down oil deterioration and insulation aging, enhancing operational reliability, and requiring no maintenance during normal operation.
100 kVA three phase oil immersed transformer features an advanced design, with significant improvements in materials, structure, and manufacturing processes. The high and low voltage clamps utilize steel straps or upper and side beams for tension, forming a robust frame structure that enhances core clamping force and resistance to transportation impacts. It boasts strong short circuit withstand capability, an attractive appearance, reliable operation, low losses, and low noise, reaching the advanced level of similar international products.
Product Features
|
Characteristic |
Product Technology Advantages |
|
Excellent insulation properties |
High quality transformer oil is used, which has high insulation strength and good heat dissipation, ensuring long term safe operation. |
|
Strong short circuit resistance |
The winding is securely supported, the coil has high mechanical strength, can withstand short circuit impacts, and has no risk of deformation or displacement. |
|
Fully sealed and leak proof |

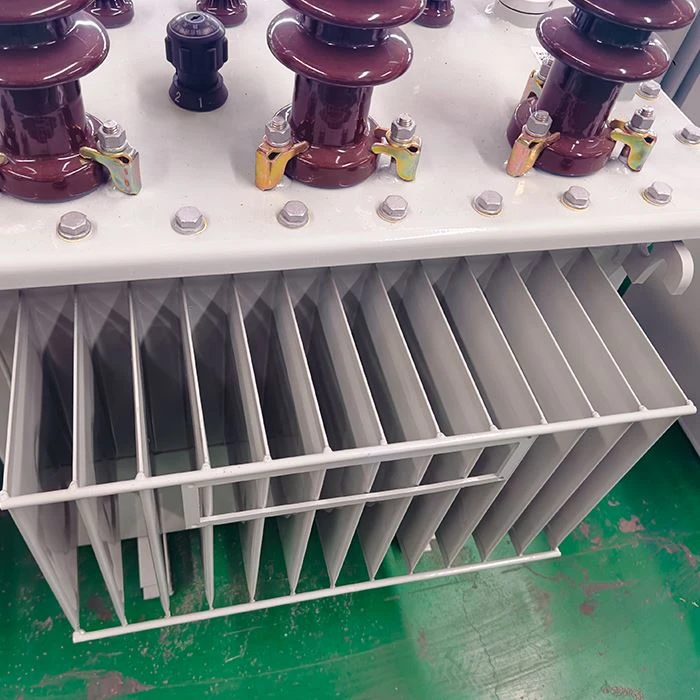

The corrugated oil tank or fully sealed structure prevents oil and water leaks, resulting in a long maintenance free period. |
|
Low loss and low noise |
High quality cold rolled grain oriented silicon steel sheets have low loss and low noise, meeting energy efficiency and environmental protection requirements. |
Technical Specifications
|
Parameters |
Technical Specifications |
|
Model |
Power Transformer |
|
Rated capacity |
100kVA (customizable upon request) |
|
Input voltage (high voltage) |
6.6kV,10kV,11kV,20kV,35kV(Customization available upon request) |
|
Output voltage (low voltage) |
0.38kV,0.4kV(Customization available upon request) |
|
Voltage regulation range |
±5%,±2×2.5%(Customization available upon request) |
|
Number of phases |
Three phase (single phase can also be specified) |
|
Frequency |
50Hz/60Hz |
|
Link Group |
Dyn11,Yyn0,Yd11,Dyn5(Customization available upon request) |
|
Winding material |
Copper / Aluminum |
|
No load loss |
Meets national standards / IEC Level 1 / Level 2 energy efficiency |
|
Load loss |
Meets national standards / IEC Level 1 / Level 2 energy efficiency |
|
No load current |
Standard design values, low loss optimization |
|
Temperature rise limit |
≤60K (oil top layer) |
|
Short circuit impedance |
Customization available upon request |
|
Cooling method |
ONAN(Oil immersion and self cooling) |
|
Insulation class |
Grade A |
|
Partial discharge |
≤20pC (Standard requirement) |
|
Implementation Standards |
IEC,GB,JIS,ANSI,IEEE,UL |
Why Choose Union Power
● Complete Accessories – Fault indicators, cable terminals, and other necessary components are available.
● Professional Installation – Our certified high-voltage electricians and senior engineers provide on-site or remote installation guidance.
● Commissioning & Testing – We use advanced electrical testing equipment, operated by experienced professionals, to ensure safe power supply.
● After-Sales Support – 24/7 online technical assistance. On-site service is guaranteed within 5 days (special parts subject to their arrival time).
● Customization – One-stop tailored solutions based on your specific application and requirements.
● Delivery Guarantee – Multiple production bases and strict QC ensure fast delivery and minimize supply chain risks.
