Product Overview

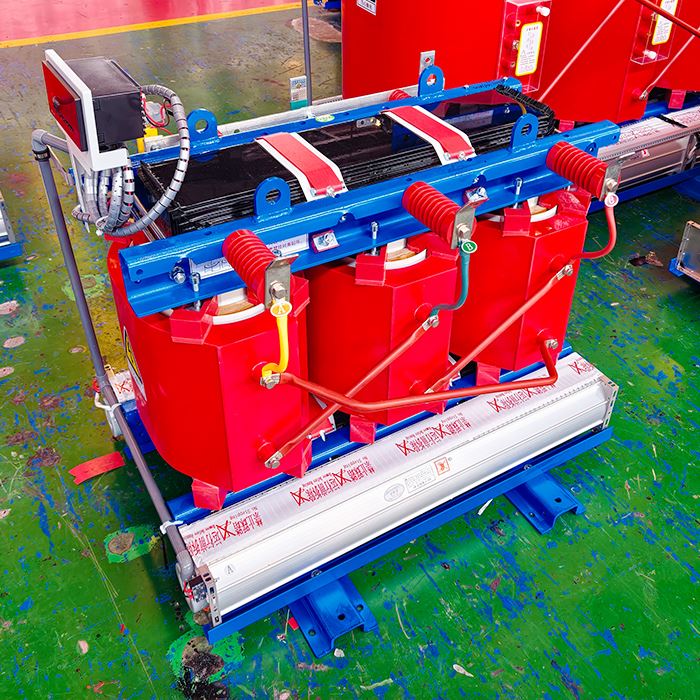

30 kVA dry type transformer is an epoxy resin insulated, oil free, fire resistant, and environmentally friendly small distribution transformer. This 30 kVA dry type transformer is a 3 phase transformer suitable for 6.6kV/10kV/0.4kV power distribution systems, primarily used for voltage conversion, power distribution, and stable power supply. The product is compact, has low losses, low noise, requires no maintenance, and has strong short circuit withstand capability. This 30 kVA dry type transformer can operate safely for extended periods indoors, in basements, small factories, buildings, and computer rooms, and is widely used in industrial, construction, municipal, and overseas small power grid scenarios.
Our 30 kVA dry type transformers have a wide range of applications: they can be used as step down transformers to meet various voltage conversion needs, in small transformer systems for lower capacity applications, or as three phase distribution transformers in industrial power systems. Thanks to their reliable performance and standardized design, we maintain a reasonable inventory level for immediate delivery. We manufacture in strict accordance with multiple international and regional standards: IEC, GB, JIS, ANSI, IEEE, and UL, while meeting energy efficiency ratings (Level 1/Level 2) and SCB series requirements. All products have passed rigorous testing and certification according to the relevant standards.
Technical Specifications
|
Number |
Technical grade |
|
Model number |
Drying type converter for drying oil |
|
Constant capacity |
30kVA (Adjustable demand system) |
|
Imported electricity (Gaogu) |
6.6kV,10kV,11kV,20kV,22kV,22.9kV,35kV(Adjustable demand system) |
|
Export electricity (low pressure) |
0.38kV,0.4kV,(Adjustable demand system) |
|
Voltage regulation range |
±5%,±2×2.5%,(Adjustable demand system) |
|
Number of phases |
Three phase(Adjustable demand system) |
|
Frequency |
50Hz/60Hz |
|
Link Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Winding material |
Aluminum/Copper |
|
No load loss |
(Adjustable demand system) |
|
Load loss |
(Adjustable demand system) |
|
No load current |
(Adjustable demand system) |
|
Temperature rise limit |
100K,125K(Corresponding to F/H class insulation)(Adjustable demand system) |
|
Short circuit impedance |
(Adjustable demand system) |
|
Cooling method |
AN (natural cooling) or AF (forced air cooling) |
|
Insulation class |
Class F (Class H optional) |
|
Partial discharge |
≤5pC |
|
Implementation Standards |
IEC,GB,JIS,ANSI,IEEE,UL |
Product Characteristics
|
Characteristics |
Product Technology Excellence |
|
Low local power emission |
Glass resin vacuum injection technology, local discharge ≤5pC, low standard requirements, extended long service life. |
|
Anti short circuit ability strength |
Linear organization, injection, transmissibility, ability to accept shortcuts, huge industrial power, wireless movement or expansion. |
|
Tide resistant |
Possible to operate under high humidity environment, no need for drying; combination protection outer material can be used in harsh environment. |
Why Choose Union Power

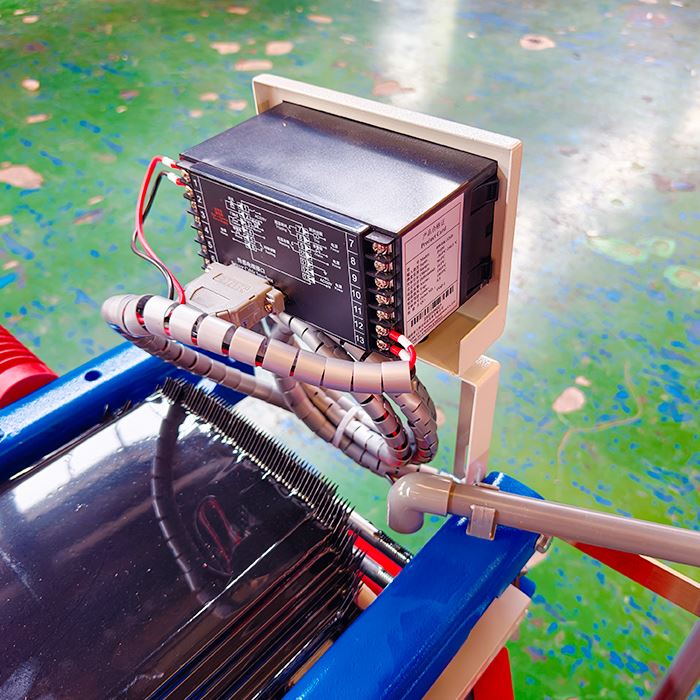

• Complete set of accessories: Includes a full set of accessories such as shock absorbers, noise reducers, and temperature controllers; fault indicators, cable terminals, and other accessories.
• Professional Installation Service: Equipped with certified high voltage electricians and senior engineers, supporting on site professional installation and remote online installation guidance.
• Commissioning and Testing: Possessing advanced and complete electrical testing equipment, performed by professional operators to ensure safe power supply.
• After sales Support: 24/7 online technical support; on site after sales service promises arrival at the destination within 5 days (for replacement of special components, the arrival time of the component shall prevail).
• Customization Capability: Providing professional one stop customized solutions based on specific customer needs and application scenarios.
• Delivery Guarantee: Multiple production bases and strict quality control ensure rapid delivery and effectively avoid supply chain disruption risks.
Regarding Union Power
Our product line includes step‑down, three‑phase, and miniature transformers – fully matching the requirements of different projects. Since 2011, we have exported to many countries and regions. As a dependable partner, we also provide customized transformers, OEM projects, and one‑stop power solutions.
