Product Overview

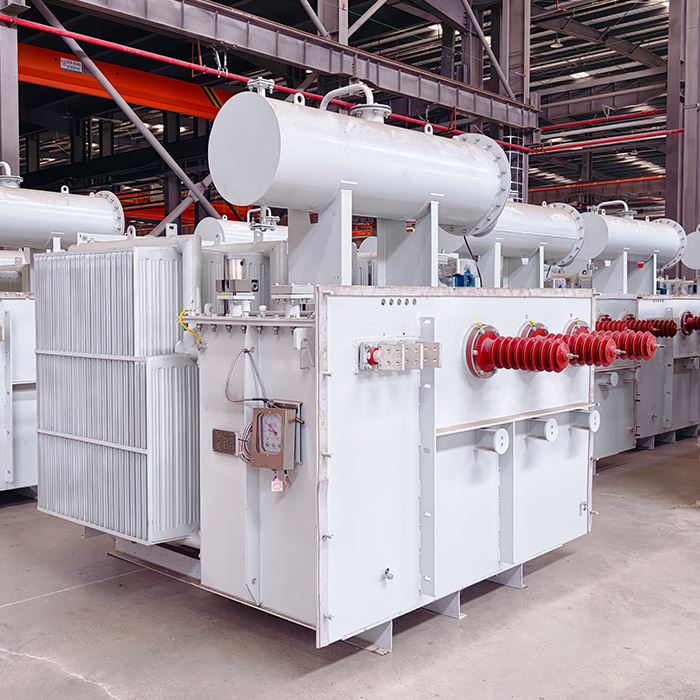

The 4000kVA power transformer is a large capacity core power distribution device in the 10kV/35kV power grid system. It is mainly used for voltage transformation, power transmission and distribution in the power system. With its advantages of large capacity, high efficiency and stable operation, it is widely used in large industrial and mining enterprises, new energy power plants (photovoltaic, wind power and energy storage), urban core power distribution hubs, large commercial complexes, data centers and key infrastructure projects. It is a key device to ensure the stable power supply in large scale power consumption scenarios, adapts to a variety of complex power consumption conditions and meets high load power demand.
The 4000kVA power transformer uses high permeability grain oriented silicon steel sheets, processed with a fully oblique joint and stepped stacking process, effectively reducing no load losses. The windings are made of high purity oxygen free copper, which has high conductivity and low losses. Combined with an optimized winding structure design, this further improves the power conversion efficiency. Long term operation can significantly save on electricity costs, which is in line with the trend of green and energy saving development.
Product Features
|
Characteristic |
Product Technology Advantages |
|
Excellent insulation properties |
High quality transformer oil is used, which has high insulation strength and good heat dissipation, ensuring long term safe operation. |
|
Strong short circuit resistance |
The winding is securely supported, the coil has high mechanical strength, can withstand short circuit impacts, and has no risk of deformation or displacement. |
|
Fully sealed and leak proof |
The corrugated oil tank or fully sealed structure prevents oil and water leaks, resulting in a long maintenance free period. |
|
Low loss and low noise |
High quality cold rolled grain oriented silicon steel sheets have low loss and low noise, meeting energy efficiency and environmental protection requirements. |
Technical Specifications
|
Parameters |
Technical Specifications |
|
Model |
Power Transformer |
|
Rated capacity |
4000kVA (customizable upon request) |
|
Input voltage (high voltage) |
6.6kV,10kV,11kV,20kV,35kV(Customization available upon request) |
|
Output voltage (low voltage) |
0.38kV,0.4kV(Customization available upon request) |
|
Voltage regulation range |
±5%,±2×2.5%(Customization available upon request) |
|
Number of phases |
Three phase (single phase can also be specified) |
|
Frequency |
50Hz/60Hz |
|
Link Group |
Dyn11,Yyn0,Yd11,Dyn5(Customization available upon request) |
|
Winding material |
Copper / Aluminum |
|
No load loss |
Meets national standards / IEC Level 1 / Level 2 energy efficiency |
|
Load loss |
Meets national standards / IEC Level 1 / Level 2 energy efficiency |
|
No load current |
Standard design values, low loss optimization |
|
Temperature rise limit |
≤60K (oil top layer) |
|
Short circuit impedance |
Customization available upon request |
|
Cooling method |
ONAN(Oil immersion and self cooling) |
|
Insulation class |
Grade A |
|
Partial discharge |
≤20pC (Standard requirement) |
|
Implementation Standards |
IEC,GB,JIS,ANSI,IEEE,UL |
Why Choose Union Power
• Complete Set of Accessories: We provide accessories such as fault indicators and cable terminals.
• Professional Installation Service: Equipped with certified high voltage electricians and senior engineers, supporting on site professional installation and remote online installation guidance.
• Commissioning and Testing: Possesses advanced and complete electrical testing equipment, performed by professional operators to ensure safe power supply.
• After Sales Support: 24/7 online technical support; on site after sales service promises arrival within 5 days (for replacement of special components, the arrival time of the component shall prevail).
• Customization Capability: Provides professional one stop customized solutions based on specific needs and application scenarios.
• Delivery Guarantee: Multiple production bases and strict quality control ensure rapid delivery and effectively avoid supply chain disruption risks.
